Transvenous Pacing (Temporary)
Related Subjects: Atropine |Acute Anaphylaxis |Basic Life Support |Advanced Life Support |Adrenaline/Epinephrine |Acute Hypotension |Cardiogenic shock |Distributive Shock |Hypovolaemic or Haemorrhagic Shock |Obstructive Shock |Septic Shock and Sepsis |Shock (General Assessment) |Toxic Shock Syndrome
⚡ Temporary pacing wires are always considered a “dirty procedure.” 👉 If the patient is stable, it is usually safer to delay and implant a permanent pacing system electively. 🚑 Always seek senior advice if unsure.
📌 Indications
- Asystolic cardiac arrest with persisting P-wave activity
- High-degree atrioventricular (AV) block in the setting of acute myocardial infarction
- High risk of developing symptomatic bradycardia during an interventional/surgical cardiac procedure
- Failure of transcutaneous pacing with electrode pads
- Maintain HR 85–100 bpm in order to suppress torsades de pointes
🛠️ Method
- Requires central venous access. Typical entry sites:
- Right Internal Jugular vein
- Right Subclavian vein
- Right Femoral vein
- Insert a venous sheath large enough to pass the pacing wire. Aim to place the tip in the apex of the right ventricle (trial and error often required).
- Set pacing rate initially to ~70/min.
- Gradually increase output voltage - most patients capture at ~3–4 V. ➡️ Once capture is achieved, program output at ~2 × threshold (or at least above it).
- Check pacing threshold daily, as thresholds often rise post-procedure → may need repositioning.
- Confirm capture on ECG before leaving the patient.
⚠️ Complications
- Failure of placement → urgent help required
- Pneumothorax (esp. with subclavian approach)
- Infection and sepsis (strict asepsis required)
- Cardiac perforation → tamponade
- Pacing failure (loss of capture, lead displacement, wire fracture)

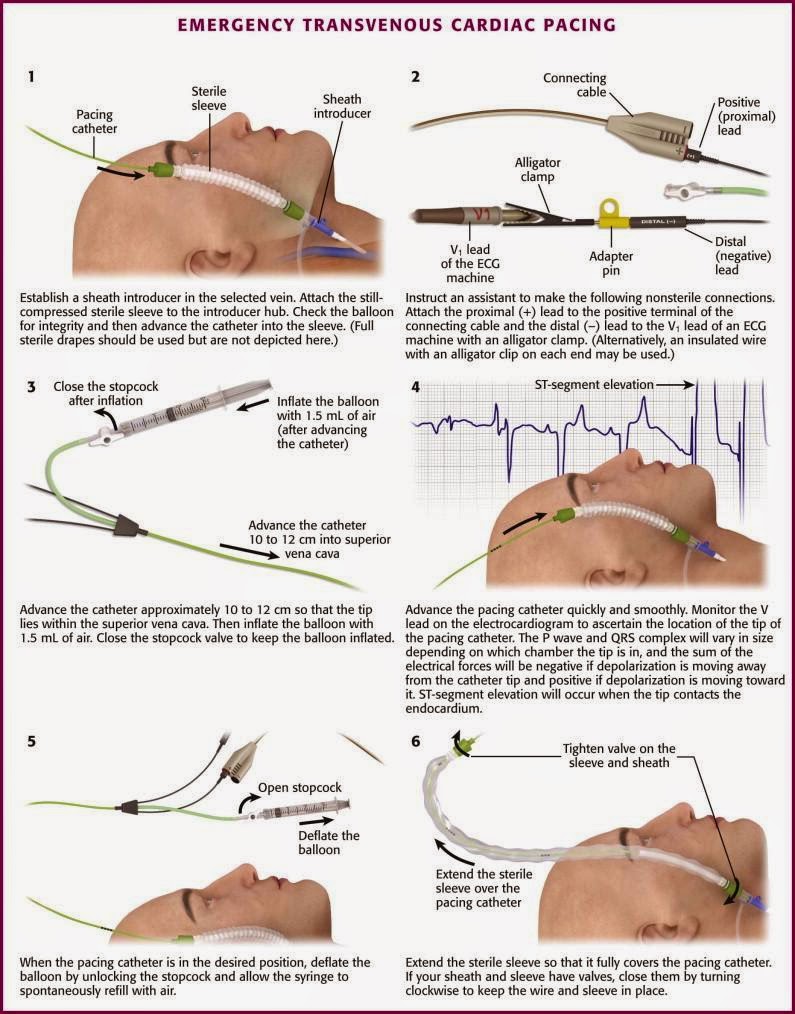

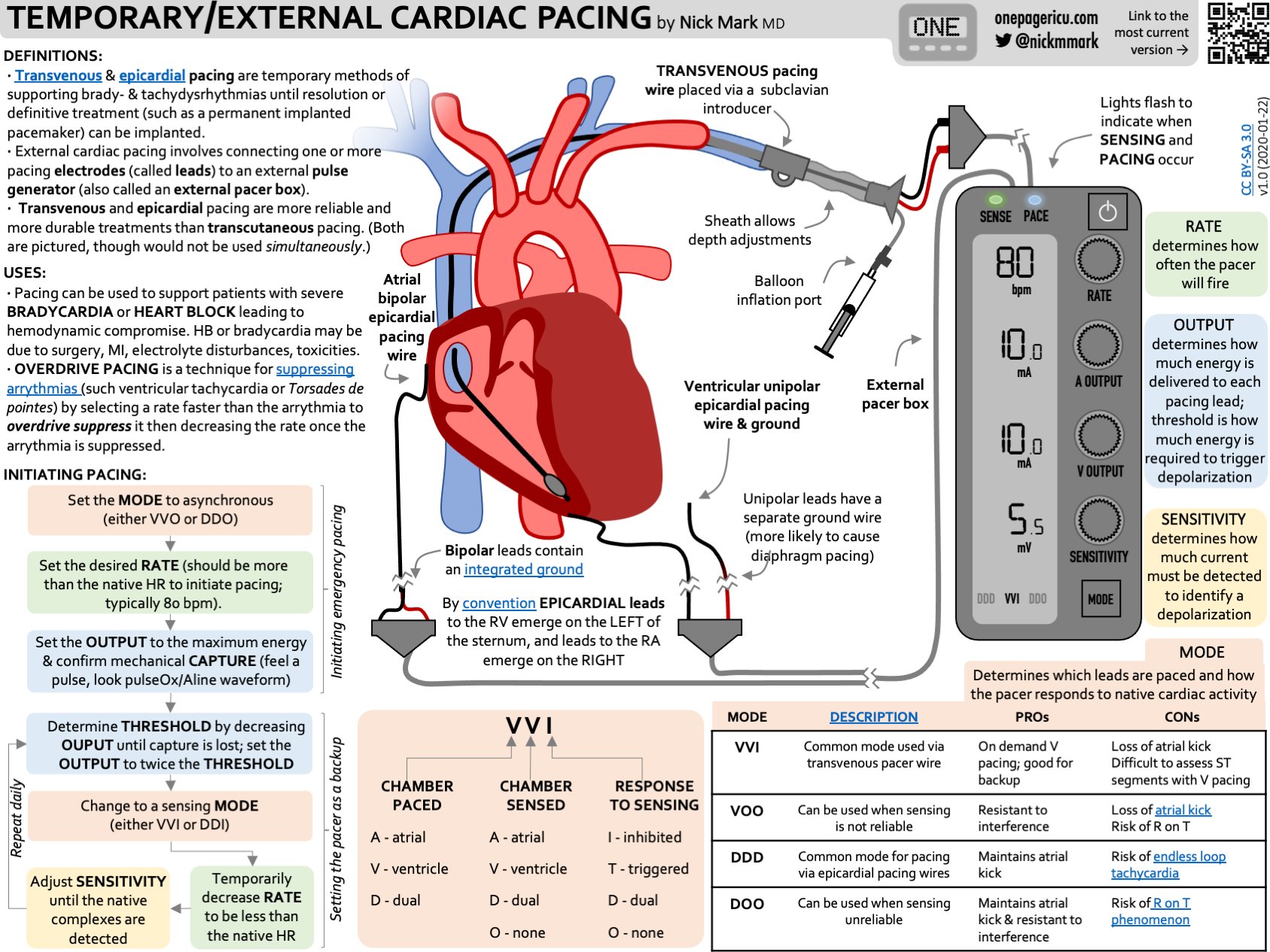

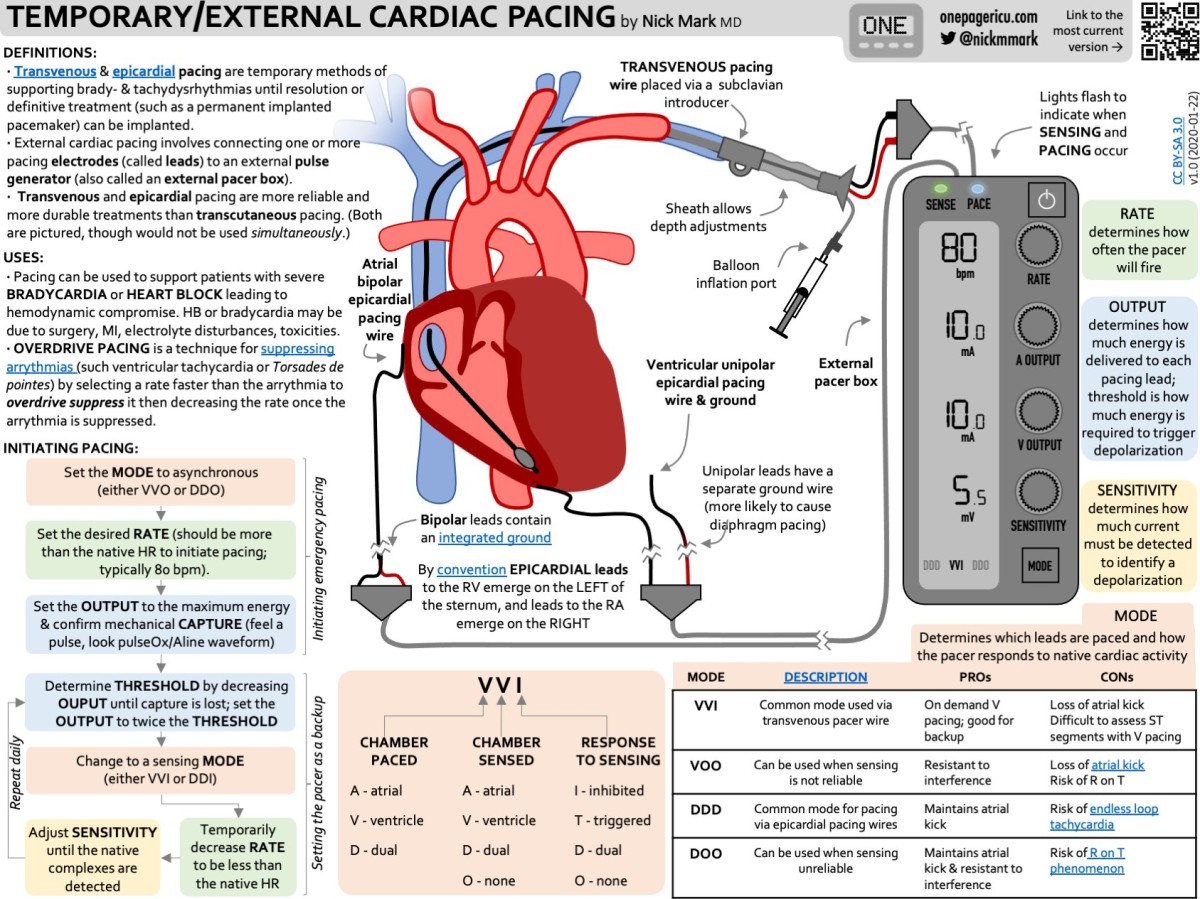

📊 Diagrams
📚 References
💡 Exam Pearl: Always think: indication, access site, threshold check, complications. If the patient is stable, defer to permanent pacing rather than risking infection or displacement with a temporary wire.
