For HFrEF, NICE recommends four foundational classes: an ACE inhibitor, an evidence-based beta-blocker, a mineralocorticoid-receptor antagonist and an SGLT2 inhibitor, selected and introduced according to haemodynamics, renal function, potassium, frailty and preference.
Consider an ARNI in place of the ACE inhibitor for persistent symptoms despite maximally tolerated four-drug treatment; specific ACE inhibitor intolerance and previous angioedema require a different choice.
For HFmrEF, NICE advises considering the four classes; for HFpEF, consider an MRA and SGLT2 inhibitor where indicated. Confirm the phenotype and treat congestion and comorbidities.
Monitor renal function and electrolytes before and during relevant treatment; assess iron status and anaemia in HFrEF. A normal ejection fraction does not exclude clinically important heart failure.

Reference: NICE NG106 (checked 2026-10-30). This is a targeted evidence-linked teaching update; the historic article below still requires full clinical reconciliation. Follow local protocols and the current BNF for prescribing.

🫀 Heart failure (HF) is a clinical syndrome (symptoms + signs) caused by a structural/functional cardiac problem leading to reduced cardiac output and/or raised filling pressures. 🎯 Exam focus: confirm HF → define the phenotype by EF (HFrEF vs HFpEF) → treat congestion + start disease-modifying therapy early → manage comorbidities and triggers.

🔎 Core definitions (EF-based)

🔻 HFrEF (reduced EF): LVEF ≤40% + clinical HF.
🟠 HFmrEF (mildly reduced EF): LVEF 41–49% + clinical HF.
🟢 HFpEF (preserved EF): LVEF ≥50% + clinical HF and evidence of raised filling pressures/diastolic dysfunction (often LA enlargement, LVH, raised E/e’).
📈 HFimpEF (improved EF): previous LVEF ≤40% that has improved to >40% - continue HFrEF therapy (benefit persists).

🧠 Pathophysiology: why HFrEF and HFpEF behave differently

🔻 HFrEF: primary problem is impaired contractility (often post-MI or dilated cardiomyopathy) → ↓ stroke volume → compensatory SNS/RAAS activation → salt/water retention, vasoconstriction, and adverse remodelling (LV dilatation).
🟢 HFpEF: primary problem is impaired relaxation + increased stiffness (often long-standing HTN, ageing, obesity, diabetes) → normal EF but high filling pressures → pulmonary congestion on exertion, AF susceptibility, and exercise intolerance.
⚠️ Both phenotypes share: congestion, neurohormonal activation, inflammation, and high comorbidity burden - but disease-modifying evidence is strongest in HFrEF.

🧩 Causes of Heart Failure (HF) - exam-friendly table

Cause category	Typical examples	Clues / why it matters (high-yield)
🫀 Ischaemic heart disease (IHD)	Prior MI, chronic CAD, hibernating myocardium	Most common cause of HFrEF in the UK; ECG Q waves/old infarct, angina history, regional wall motion abnormalities on echo → consider revascularisation if appropriate.
📈 Hypertension	Long-standing uncontrolled BP	Pressure overload → LVH → diastolic dysfunction (HFpEF) ± later systolic failure; echo shows concentric LVH/LA enlargement; BP control is disease-modifying for HFpEF trajectory.
🚪 Valvular heart disease	AS, AR, MR, MS	Murmurs + echo severity; AS/HTN = pressure overload, AR/MR = volume overload; valve intervention can reverse symptoms and prevent progression.
🧬 Cardiomyopathies	Dilated (familial/idiopathic), hypertrophic, restrictive	Dilated → HFrEF; hypertrophic/restrictive → often HFpEF physiology; think genetics, myocarditis history, alcohol/chemo; cardiac MRI helps phenotype (fibrosis/infiltration).
⚡ Arrhythmia-related HF	AF (loss of atrial kick), rapid AF, SVT, frequent ectopy; tachycardia-induced cardiomyopathy	Rate/rhythm control can markedly improve EF if tachycardia-driven; always check ECG/Holter in “unexplained” HF or fluctuating symptoms.
🦠 Myocarditis	Viral, autoimmune, post-infective	Often younger patient, chest pain/viral prodrome, troponin rise; MRI shows inflammation; some progress to dilated cardiomyopathy.
🧫 Infiltrative / storage disease	Amyloidosis, sarcoid, haemochromatosis	Often HFpEF pattern + thick “sparkly” myocardium, low-voltage ECG (amyloid), conduction disease; specific therapies exist so don’t miss (MRI + targeted blood tests).
🫁 Pulmonary causes (right HF)	Cor pulmonale (COPD/ILD), pulmonary HTN, chronic thromboembolic disease	Raised JVP, peripheral oedema with relatively “clear” lungs; echo RV strain/pulmonary pressures; treat lung disease and consider pulmonary HTN/CTEPH pathways.
🧱 Pericardial disease	Constrictive pericarditis, tamponade	“HF signs with preserved EF”: raised JVP, hepatomegaly/ascites; tamponade = hypotension + tachycardia + raised JVP; echo is key and treatment is procedural.
🧠 Endocrine / metabolic	Thyrotoxicosis, hypothyroidism, diabetes, severe renal failure	Can precipitate or mimic HF via fluid retention and altered vascular tone; TFTs, HbA1c, renal function are part of standard HF workup.
🩸 High-output states	Severe anaemia, sepsis, AV fistula, pregnancy, beriberi (thiamine deficiency), Paget’s	Warm peripheries, bounding pulse, wide pulse pressure; the heart “can’t keep up” despite high CO - treat the driver (e.g., anaemia/sepsis).
🍷 Toxins / drugs / iatrogenic	Alcohol, cocaine; anthracyclines, trastuzumab; radiotherapy; NSAIDs (fluid retention), some CCBs	Medication history is mandatory; stopping/avoiding offending agents can prevent deterioration; chemo-related cardiomyopathy needs cardio-oncology follow-up.
🧷 Congenital / structural	ASD/VSD, coarctation, complex congenital lesions	May present later with pulmonary HTN/right HF or LV failure; murmurs, fixed split S2, echo diagnosis; specialist congenital heart disease input.

🧠 Teaching pearl: In exams, lead with IHD + hypertension + valve disease first, then add the “missable but treatable” causes (tachycardia-induced cardiomyopathy, myocarditis, amyloid/iron overload, pericardial disease, thyroid disease, high-output states). A great closing line is: “I would also look for triggers (infection, ACS, AF with RVR, PE, anaemia, thyroid disease, drugs like NSAIDs) and treat them in parallel.”

📊 HFrEF vs HFpEF (high-yield comparison table)

Feature	🔻 HFrEF (≤40%)	🟢 HFpEF (≥50%)
Typical patient	More often male; ischaemic heart disease; dilated LV	More often older, female; HTN, obesity, diabetes; AF common
Core mechanism	↓ contractility → ↓ forward flow + remodelling	Stiff LV → ↑ filling pressures (esp. with exertion) despite preserved EF
Echo pattern	Low EF, LV dilatation, global/regional wall motion abnormality	Normal EF, concentric LVH, LA enlargement, diastolic dysfunction indices
Symptoms	Very similar: dyspnoea, orthopnoea/PND, fatigue, reduced exercise tolerance, ankle oedema
Signs	S3, displaced apex, signs of congestion	S4 may be present; often HTN; signs of congestion; AF common
Prognostic levers	Strong mortality-reducing GDMT available	Focus on congestion + comorbidity control; SGLT2 inhibitors reduce HF admissions

🩺 Presentation (OSCE structure)

🫁 Breathlessness: exertional dyspnoea → orthopnoea → PND (ask “how many pillows?”).
💧 Congestion: ankle oedema, weight gain, abdominal distension/ascites, nocturia.
🧠 Low output: fatigue, poor exercise tolerance, dizziness, cool peripheries (advanced).
🎧 Key exam findings: raised JVP, bibasal crackles, pleural effusions, pitting oedema, hepatomegaly, displaced apex, murmurs (valve disease), S3 (HFrEF), AF.

🧪 Investigations (UK exam-friendly “what + why”)

📈 ECG: rarely normal in true HF; look for AF, prior MI, LVH, bundle branch block.

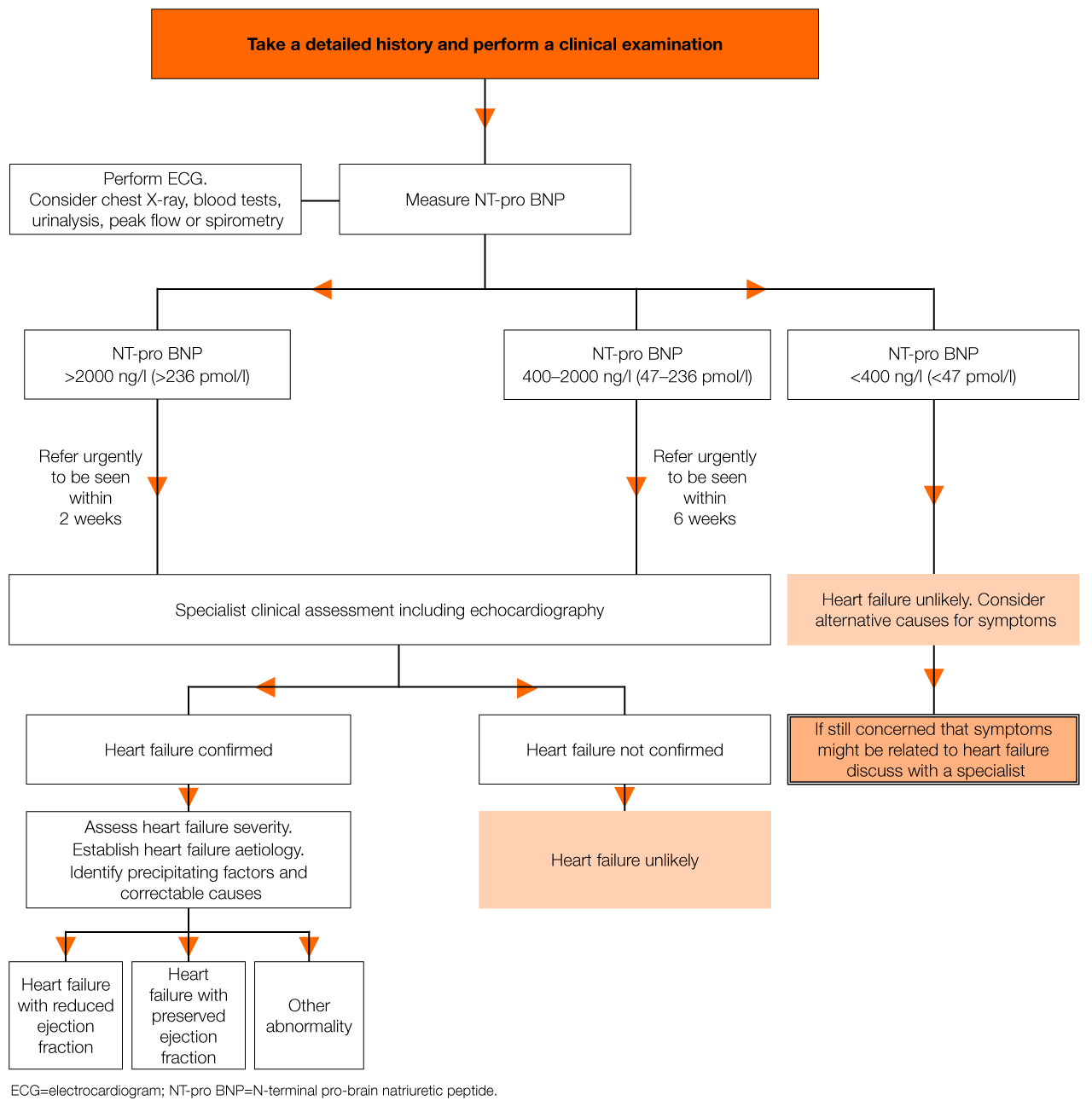

🩸 Natriuretic peptides (BNP/NT-proBNP): ventricular stretch marker; excellent rule-out test if low.
🖼️ CXR: cardiomegaly, upper lobe diversion, Kerley B lines, alveolar oedema, pleural effusions.
🫀 Echocardiography (gold standard): confirms EF phenotype, valves, RV function, pulmonary pressures, pericardium, diastolic indices.
🧪 Bloods to look for causes/complications: FBC, U&E (baseline + drug safety), LFTs, TFTs, HbA1c, lipids, ferritin/TSAT (iron deficiency), troponin if ACS suspected.

🧠 Teaching point: HF symptoms are non-specific. The diagnostic “anchor” is usually raised natriuretic peptide + echo confirmation. Obesity can lower BNP/NT-proBNP (false reassurance), while AF/CKD/age can raise them without HF - interpret in context.

💊 Management principles (applies to all HF phenotypes)

🧯 Treat congestion: loop diuretic for fluid overload (symptom relief; not a mortality drug).
🔍 Find and treat the cause: IHD, HTN, valve disease, tachycardia-induced cardiomyopathy, toxins, myocarditis.
🧩 Fix triggers: infection, ACS, AF with RVR, PE, anaemia, thyrotoxicosis, poor adherence, NSAIDs.
🧑‍⚕️ Educate: daily weights, salt/fluid advice when appropriate, vaccination, exercise/rehab, sick-day rules (esp. diuretics/SGLT2i), when to seek help.

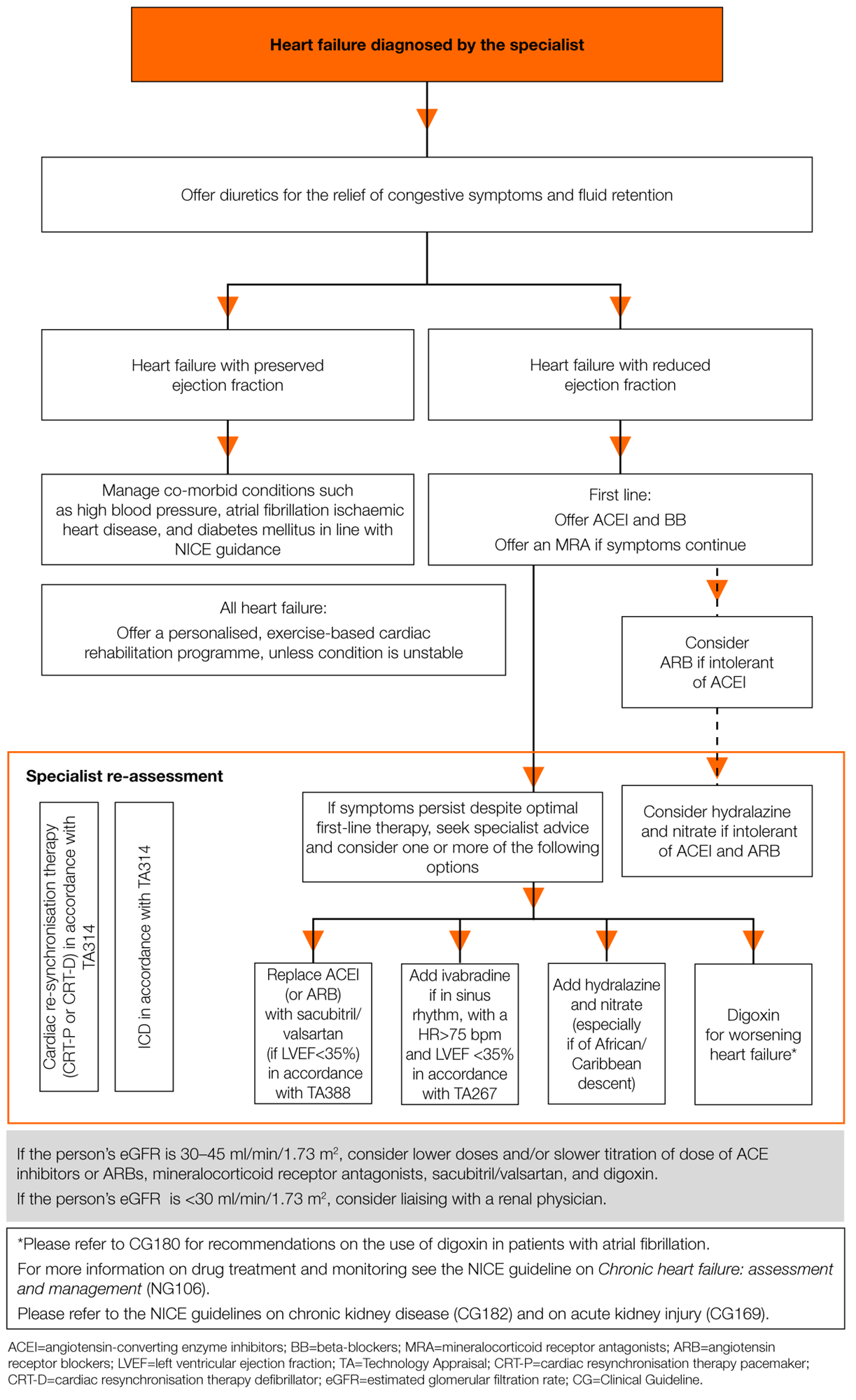

🔻 HFrEF (≤40%): disease-modifying therapy (the “4 pillars”)

✅ HFrEF is where you win lives: combine disease-modifying drugs early (as tolerated), then uptitrate. 🎯 Typical “pillar” set: ACEi/ARB or ARNI + beta-blocker + MRA + SGLT2 inhibitor.

🧱 ACEi (or ARB if intolerant): reduces RAAS-driven remodelling and mortality; monitor BP, creatinine, K⁺.
🧠 Beta-blocker (HF-licensed): bisoprolol/carvedilol/metoprolol succinate; start when euvolaemic; slow uptitration.
🧂 MRA: spironolactone/eplerenone; mortality benefit; monitor K⁺ and renal function closely.
🧪 SGLT2 inhibitor: dapagliflozin/empagliflozin; reduces HF hospitalisation and CV events even without diabetes; watch volume status and genital infections.
💧 Loop diuretic: for congestion (symptom control); adjust to weights and renal function.
➕ Selected add-ons (specialist-led): ARNI switch if symptomatic despite ACEi/ARB; ivabradine (sinus rhythm HR ≥70 despite BB); hydralazine/isosorbide dinitrate if RAAS drugs not tolerated; iron (IV) if deficient; devices (ICD/CRT) based on EF/QRS/LBBB and symptoms.

🟢 HFpEF (≥50%): what actually helps

🧠 HFpEF is often “comorbidity-driven HF”: you improve symptoms and admissions by controlling BP, volume status, AF, ischaemia, obesity, diabetes, sleep apnoea. SGLT2 inhibitors have clear outcome benefit for HFpEF/HFmrEF (especially reducing HF admissions).

💧 Diuretics for congestion: cornerstone for symptom relief (careful with preload dependence).
🩺 Blood pressure optimisation: treat HTN aggressively (reduces LVH and filling pressures).
🫀 AF management: rate/rhythm strategy + anticoagulation when indicated; AF is a major driver of HFpEF decompensation.
🍩 Weight + metabolic health: obesity and insulin resistance worsen diastolic stiffness; weight loss/exercise improves functional capacity.
🧪 SGLT2 inhibitors: recommended option for HFpEF/HFmrEF to reduce HF events (UK appraisal-supported).
🧩 Consider specialist therapies: MRAs/ARNI may help selected patients (benefits vary); decisions usually MDT/heart failure clinic-led.

⚖️ HFrEF vs HFpEF: “what you say in exams”

🎤 HFrEF: “I will start disease-modifying therapy early (4 pillars) and uptitrate to target doses, plus diuretics for congestion.”
🎤 HFpEF: “I will treat congestion with diuretics and aggressively manage comorbidities (HTN, AF, obesity, diabetes), consider SGLT2 inhibitor, and arrange HF clinic follow-up.”

🚨 Acute decompensated HF (quick OSCE line)

🫁 Sit up, oxygen only if hypoxic, monitor, IV access, treat pulmonary oedema (IV loop diuretic ± nitrates if hypertensive), treat trigger (ACS/AF/sepsis), early senior/CCO input if unstable.

📚 References (UK + core)

Additional related clinical topics

Acute Cardiogenic Pulmonary Oedema (CPO/LVF) ❤️

💔 Cardiogenic Pulmonary Oedema (CPO) is a medical emergency. Often triggered by STEMI, arrhythmia, or mechanical failure. Always exclude these early. A simple bedside echo is invaluable. Acute pulmonary oedema is usually driven by a sudden rise in left-sided filling pressures (LV failure/acute MR/MI, hypertensive crisis), forcing fluid across the alveolar-capillary membrane. Your early wins are: improve oxygenation/ventilation (CPAP), offload the lungs (diuresis), and reduce preload/afterload (vasodilators) while treating the trigger.

💔 Emergency Management: Cardiogenic Pulmonary Oedema (CPO)
🪑 Position → Sit upright, comfort, legs dependent, reassure, may need catheter 🫁 Oxygen → Maintain sats >92% (88–92% if COPD); CPAP if hypoxic 💧 Diuretics → Furosemide 40–80 mg IV bolus often as 4mg/kg but may need more rapid if in extremis. Diuresis and venodilates 💉 Opiates → Morphine 2.5–5 mg IV slow + antiemetic 💊 Nitrates → GTN spray; IV infusion if SBP >110 mmHg 🫀 Arrhythmias/STEMI → Treat Fast AF (Digoxin, Amiodarone) /VT (Amiodarone or DC shock), urgent PCI if STEMI 🔌 Advanced Support → CPAP 5–10 cmH₂O/NIV, balloon pump, dialysis if needed, Papillary rupture / VSD → balloon pump + urgent surgery

💔 Emergency Management: Cardiogenic Pulmonary Oedema (CPO)

🪑 Position → Sit upright, comfort, legs dependent, reassure, may need catheter
🫁 Oxygen → Maintain sats >92% (88–92% if COPD); CPAP if hypoxic
💧 Diuretics → Furosemide 40–80 mg IV bolus often as 4mg/kg but may need more rapid if in extremis. Diuresis and venodilates
💉 Opiates → Morphine 2.5–5 mg IV slow + antiemetic
💊 Nitrates → GTN spray; IV infusion if SBP >110 mmHg
🫀 Arrhythmias/STEMI → Treat Fast AF (Digoxin, Amiodarone) /VT (Amiodarone or DC shock), urgent PCI if STEMI
🔌 Advanced Support → CPAP 5–10 cmH₂O/NIV, balloon pump, dialysis if needed, Papillary rupture / VSD → balloon pump + urgent surgery

💡 Mnemonic: sit up and FONAM = Furosemide, Oxygen Nitrates Arrhythmia Morphine,

📖 About

CPO = acute left ventricular dysfunction → pulmonary venous hypertension → alveolar flooding.
Rapidly leads to respiratory failure ± cardiogenic shock.
30-day mortality ~15% if NT-proBNP >5000 ng/L.
LV systolic function strongly influences prognosis.

⚖️ Pathophysiology

Normally: Plasma oncotic pressure (~25 mmHg) holds water in; Pulmonary capillary pressure (~7–12 mmHg) pushes fluid out.
If PCP > POP → alveolar oedema → hypoxia, ↑ work of breathing.

🔎 Aetiology

Poor systolic function (e.g. MI).
Poor diastolic function (HFpEF).
Valve lesions (MR, AR, AS).
Arrhythmias (AF, VT, bradycardia).
Hypertension, myocarditis, cardiomyopathy.
Fluid overload (blood transfusion, renal failure).

❓ Precipitating Causes

Cause	Clues	Diagnostics
MI	Chest pain, diaphoresis	ECG, troponin, echo
AF	Palpitations, irregular pulse	ECG, echo
HTN	Headache, chest pain	BP, LVH on echo
Valvular disease	Murmur, dyspnoea	Echo, Doppler
PE	Pleuritic pain, haemoptysis	CTPA, D-dimer
Sepsis	Fever, hypotension	Blood cultures, lactate
Drug/alcohol	Recent change	Medication review

📊 Clinical: Left vs Right HF

The patient may be grey cold clammy and dramatically breathless and struggling to breath with a tachycardia and S3 and possibly murmurs, there is a raised JVP and lungs have fine inspiratory crackles. The sats may be low. Urgent management is needed.

Left-sided: Tachypnoea, Tachycardia, S3, Murmurs, Orthopnoea, PND, bibasal creps, “bat-wing” CXR.
Right-sided: Raised JVP, hepatomegaly, ascites, oedema.
Often coexist → congestive HF.

🧪 Investigations (Acute Cardiogenic Pulmonary Oedema)

Bedside (immediate):
- Vitals + monitoring: RR, BP, HR, temperature, continuous SpO₂ + ECG monitoring.
- ECG (12-lead): look for ACS (ST/T changes), arrhythmia (AF, VT), LVH/strain, conduction disease.
- ABG/VBG: pO₂/pCO₂, pH, HCO₃⁻; identify hypercapnia/tiring (important for NIV/ITU decisions).
- Lactate: marker of hypoperfusion/shock and severity.
- Glucose: especially if diabetic/altered mental state.
- Urine output: catheter if severe illness; helps gauge diuretic response and perfusion.
Bloods:
- FBC: anaemia (reduces oxygen delivery), leukocytosis (infection trigger).
- U&E/creatinine: baseline renal function, K⁺/Na⁺ before diuresis/ACEi; guides dosing and safety.
- LFTs: hepatic congestion or hypoperfusion (“shock liver”).
- Troponin: MI/ischaemia trigger (interpret in context; may be type 2 rise in severe HF).
- NT-proBNP: supports HF diagnosis if uncertain (less helpful if obvious clinically or known HF).
- CRP: if infection suspected; blood cultures before antibiotics if septic.
- TFTs: not urgent in resus, but useful if AF/new HF or unexplained decompensation.
- Mg/Ca/phosphate: if arrhythmia or on diuretics (electrolytes drive ectopy and rate control success).
Imaging:
- CXR: cardiomegaly, upper lobe diversion, interstitial oedema (Kerley B lines), perihilar “bat-wing” shadowing, pleural effusions; also exclude pneumonia/pneumothorax.
- Point-of-care ultrasound (if available): lung B-lines, pleural effusions, IVC size; rapid bedside support for congestion.
- Echocardiography (urgent if severe/unclear): LV/RV function, regional wall motion (ischaemia), valve lesions (acute MR/AS), pericardial effusion/tamponade, pulmonary pressures.
Advanced / specialist tests (selected cases, not acute resus):
- CT pulmonary angiography: if PE is a realistic alternative/trigger (especially if disproportionate hypoxia, RV strain).
- Coronary angiography: if STEMI/NSTEMI or ongoing ischaemia driving ACPO (cardiology pathway).
- Cardiac MRI: myocarditis/infiltrative disease/scar assessment once stabilised.
- Nuclear imaging (SPECT/PET): viability/ischaemia assessment in chronic planning rather than acute management.

⚡ Complications

Respiratory failure:
- Type 1 (hypoxaemic): alveolar flooding + V/Q mismatch → low pO₂.
- Progression to Type 2 (hypercapnic): fatigue, reduced minute ventilation, worsening alveolar ventilation (red flag for NIV failure/ITU).
Cardiac complications:
- Arrhythmias: AF with fast rate (worsens filling), VT/VF, bradyarrhythmias; risk of sudden cardiac death.
- Myocardial ischaemia/infarction: ACPO can be both a cause and consequence of ACS (type 1 vs demand-mediated injury).
- Cardiogenic shock: “cold + wet” phenotype with hypoperfusion, rising lactate, oliguria.
Renal dysfunction:
- AKI / cardiorenal syndrome: low forward flow + venous congestion + diuretics/ACEi exposure → creatinine rise and diuretic resistance.
Hepatic and splanchnic congestion:
- Congestive hepatopathy: cholestatic LFT pattern; can progress to marked transaminitis if hypoperfusion (“shock liver”).
- Gut oedema: impaired drug absorption (e.g., oral diuretics) and malnutrition.
Electrolyte and acid–base problems:
- Hyponatraemia: dilutional (ADH-driven) and a marker of severe HF; worsens confusion/falls risk.
- Hypokalaemia / hypomagnesaemia: diuretics → ectopy/VT risk and digoxin toxicity risk.
- Hyperkalaemia: renal impairment + RAAS blockade; conduction disturbance risk.
- Metabolic alkalosis: aggressive diuresis; may worsen CO₂ retention in vulnerable patients.
Thromboembolism:
- VTE: immobility, inflammation and haemoconcentration; consider prophylaxis if safe.
- Stroke/systemic embolism: especially if AF or severe LV dysfunction with thrombus.
Functional decline and vulnerability:
- Delirium: hypoxia, infection, metabolic disturbance, opioids.
- Frailty, sarcopenia/cachexia: chronic catabolism + inflammation; strongly predicts readmission and mortality.
- Pressure injury/falls: immobility, hypotension, polypharmacy.

💊 Management

Call for help + monitor: Sit upright, continuous ECG, BP, SpO₂, RR; IV access; strict fluid balance + urine output (catheter if very unwell).
Immediate investigations: ABG/VBG (± lactate), U&E/creatinine, FBC, troponin, glucose; CXR; ECG; bedside echo if available (LV function, MR, tamponade, RV strain).
Oxygen strategy:
- Give O₂ only if hypoxic. Aim SpO₂ 94–98% (or 88–92% if known CO₂ retention).
- Early CPAP/NIV if severe distress/hypoxia despite O₂ (often rapidly reduces work of breathing and improves gas exchange).
- Escalate to CCU/ICU/anaesthetics early if tiring, reduced consciousness, or NIV failing.
Diuretics (decongestion):
- IV loop diuretic (e.g., furosemide 40 mg, 50 mg or 80 mg are all fine as needed or bumetanide 1-2 mg).
- Use higher doses if already on regular diuretics.
- Reassess response (symptoms, RR, crackles, urine output) and check renal function/electrolytes; consider infusion if poor response.
Vasodilators (reduce preload/afterload):
- If SBP ≥ 110 mmHg and ongoing distress, consider GTN (sublingual or IV infusion) to rapidly reduce pulmonary capillary pressure.
- Avoid if hypotensive, severe aortic stenosis, or suspected RV infarct.
Analgesia/anxiolysis:
- Avoid routine morphine; if used, do so cautiously (risk of respiratory depression/hypotension) and treat nausea.
If shock/poor perfusion (cold + wet):
- Urgent senior/ICU input; consider inotropes/vasopressors (e.g., dobutamine ± noradrenaline) guided by echo/BP/perfusion.
- Look hard for reversible causes: MI, acute MR, arrhythmia, tamponade, massive PE.
Treat the trigger (do not miss):
- ACS/MI: follow local ACS pathway; early cardiology review and reperfusion if indicated.
- Hypertensive ACPO: nitrates + CPAP are often key.
- Arrhythmia (AF with fast rate, VT): rate/rhythm control; urgent DC cardioversion if unstable.
- Acute valvular disease (e.g., acute MR): urgent echo + cardiothoracic/cardiology input.
- Fluid overload/renal failure: consider ultrafiltration/dialysis discussion if diuretic-resistant.
When improving (transition to chronic HF care):
- Start/optimise disease-modifying therapy once stable: ACEi/ARB/ARNI, beta-blocker, MRA, and consider SGLT2 inhibitor where appropriate (per local/NICE guidance).
- Plan follow-up, education (daily weights, salt/fluids), and review precipitant + adherence.
Advanced/definitive options (selected patients): CRT, ICD, LVAD, transplant (specialist pathways).

✅ Quick practical timing prompts

0–10 minutes: Sit up, monitoring, ABG/VBG, CPAP/NIV early if needed; if SBP ≥110, start GTN (SL then IV).
10–60 minutes: IV loop diuretic if congested; reassess BP/respiratory effort every 5–15 min; ECG/CXR; start ACS/arrhythmia pathway if indicated.
1–6 hours: Review urine output, repeat gases if severe, check U&E/K/Mg; consider escalation (infusions, inotropes, ICU) or specialist add-ons (metolazone/ultrafiltration) if resistant.

💊 Drug Table

Drug	When to use	Typical dose	Timing / titration	Key cautions
GTN (glyceryl trinitrate) – sublingual spray/tablet	Severe dyspnoea with SBP ≥110 mmHg, especially hypertensive ACPO, while preparing IV infusion	400 micrograms (1 spray) SL	Repeat every 5 minutes as needed while monitoring BP (commonly up to 3 doses)	Avoid/very cautious in hypotension, severe aortic stenosis, suspected RV infarct, recent PDE5 inhibitors
GTN – IV infusion	Ongoing distress despite oxygen/NIV, hypertensive pulmonary oedema	Start 5–10 micrograms/min	Increase by 5–10 micrograms/min every 3–5 min to symptom relief/BP target (often 20–200 micrograms/min; higher in monitored/ICU settings)	Continuous BP monitoring; stop/reduce if SBP falls or headache/hypotension develops
Furosemide – IV bolus	Clinical fluid overload, raised JVP/oedema, or known HF with congestion	40 mg IV (if diuretic-naïve). If already on loop diuretic: same as or up to 2× their usual total daily oral dose as IV equivalent (senior-led)	Assess urine output and symptoms at 30–60 min. Consider repeat dosing if inadequate response	Can worsen hypotension/AKI; check U&E, watch K/Mg; avoid “diuretic-first” if profoundly hypertensive distress where nitrates/NIV are the rapid wins
Bumetanide – IV bolus	Alternative loop diuretic (e.g., poor response to furosemide, significant gut oedema, or local preference)	1 mg IV (roughly ≈ furosemide 40 mg)	Reassess at 30–60 min; repeat/step up guided by response	Same cautions as loop diuretics; electrolyte depletion
Loop diuretic infusion (e.g., furosemide)	Diuretic resistance or repeated boluses needed; ICU/CCU-style pathway	Common approach: loading bolus then 5–10 mg/hour (ranges vary)	Titrate every 1–2 hours to urine output/clinical congestion; close U&E monitoring	Requires careful monitoring; risk of AKI, ototoxicity at very high doses/rapid pushes; senior-led
Morphine – IV (NOT routine)	Only if severe distress/pain/anxiety persists despite NIV and haemodynamic stabilisation, and senior agrees	1–2 mg IV slow, small aliquots	Reassess after 5–10 min; repeat cautiously if needed	Respiratory depression, hypotension, nausea/vomiting; avoid if drowsy/CO₂ retaining/hypotensive
Antiemetic (e.g., ondansetron)	If opioid used or significant nausea/vomiting	4 mg IV	Single dose; reassess	QT prolongation risk (check ECG if concerns)
Dobutamine – IV infusion	Cold + wet (hypoperfusion/shock) with low cardiac output, typically ICU/CCU after echo/senior review	Start 2.5 micrograms/kg/min	Titrate every 10–20 min (typical range 2.5–20 micrograms/kg/min) to perfusion/BP/urine output	Arrhythmias, tachycardia, myocardial ischaemia; needs monitoring and clear diagnosis
Noradrenaline (norepinephrine) – IV infusion	Hypotension/shock to maintain perfusion pressure (often alongside inotrope), ICU pathway	Common starting range 0.05 micrograms/kg/min (local protocols vary)	Titrate every 2–5 min to MAP/BP target	Extravasation risk; ideally central access; treat the cause (MI, MR, tamponade etc.)
Nitroprusside – IV infusion (specialist)	Refractory hypertensive ACPO with severe afterload problem (ICU/CCU only)	Start 0.3 micrograms/kg/min	Titrate every 3–5 min (typical max ~10 micrograms/kg/min short term)	Cyanide/thiocyanate toxicity risk, hypotension; requires invasive monitoring
ACE inhibitor (e.g., captopril – oral) (selected cases)	After initial stabilisation, persistent hypertension with HF once not in shock and no contraindications	6.25 mg PO	Can repeat/uptitrate cautiously after 30–60 min with BP monitoring (senior-led)	Avoid in hypotension, AKI, hyperkalaemia, bilateral RAS, pregnancy; not a “first 10 minutes” drug

⚡ Additional interventions

Trigger / scenario	Drug(s)	Typical dose	Timing / titration	Key cautions / notes
Suspected ACS / MI	Aspirin	300 mg PO (chewed) if not already taken	Give immediately once ACS suspected (per ACS pathway)	Contra: true aspirin allergy, active major bleeding
Suspected ACS / MI	P2Y12 inhibitor (specialist pathway)	Common UK practice: Ticagrelor 180 mg PO loading or Clopidogrel 300–600 mg PO loading (varies by STEMI/NSTEMI pathway)	As per local cardiology/PCI pathway (often after ECG confirmation and discussion)	Bleeding risk; avoid if urgent surgery likely; follow trust protocol
Suspected ACS / ongoing ischaemic pain	GTN (as per core table)	SL 400 micrograms q5 min PRN; IV start 5–10 micrograms/min	Titrate every 3–5 min to pain relief/BP	Avoid in hypotension, severe AS, RV infarct, recent PDE5 inhibitors
AF with fast ventricular response (haemodynamically stable)	Digoxin (rate control in HF)	500 micrograms IV (or PO) then 250 micrograms at 6 hours and again at 12 hours (max 1.0–1.5 mg in 24 h depending on age/renal function)	Slower onset; reassess rate and symptoms over hours	Reduce dose in elderly/renal impairment; toxicity risk (arrhythmias, GI, confusion); check K/Mg
AF with fast rate (stable, BP ok)	Amiodarone (rhythm control / rate control alternative)	300 mg IV over 20–60 min, then infusion 900 mg over 24 h	Use when appropriate (often senior-led/cardiology)	Hypotension/bradycardia; interacts with warfarin/digoxin; needs ECG monitoring
Unstable tachyarrhythmia (AF/VT with hypotension, ischaemia, pulmonary oedema)	DC cardioversion	Energy per ALS protocol (biphasic escalating)	Immediate	Not a drug, but the correct “dose” is electricity; involve resus/anaesthetics
VT / Electrical storm (with ACPO)	Amiodarone	300 mg IV over 20–60 min (can repeat per ALS), then 900 mg/24 h	Early, alongside correction of K/Mg and ischaemia treatment	Consider magnesium; urgent cardiology/ICU for recurrent VT/VF
Torsades / hypomagnesaemia	Magnesium sulfate	2 g IV (8 mmol) over 10–15 min	May repeat once if needed; then consider infusion per protocol	Monitor reflexes/respiration in renal failure; correct K as well
Hypertensive emergency driving ACPO	GTN IV (first-line add-on)	Start 5–10 micrograms/min, titrate rapidly	Increase every 3–5 min to symptom/BP response	Often the “fastest fix” with CPAP; avoid if severe AS/RV infarct/hypotension
Acute severe mitral regurgitation (papillary muscle dysfunction/rupture, endocarditis etc.)	Vasodilator (GTN) ± inotrope (dobutamine)	GTN as above; dobutamine start 2.5 micrograms/kg/min	Titrate GTN every 3–5 min; dobutamine every 10–20 min	Needs urgent echo + cardiology/cardiothoracic; may require mechanical support/urgent surgery
Suspected sepsis/pneumonia precipitant	Antibiotics (per local guideline)	Depends on source and severity	Give within 1 hour if sepsis suspected	Fluid resuscitation must be cautious in ACPO-senior review; use vasopressors if shock rather than large fluids
Thromboembolism risk / immobility	VTE prophylaxis (if no contraindication)	Example: Enoxaparin 40 mg SC OD (adjust for renal function/weight)	Once stable and bleeding risk assessed	Follow local VTE policy; avoid if active bleeding/very high risk
Fluid overload + renal failure / diuretic resistance	Metolazone (specialist add-on)	2.5 mg PO	Often single dose, reassess over 6–12 h; may repeat cautiously (senior-led)	Profound diuresis/hypoNa/hypoK; close U&E monitoring; usually HF specialist decision
Persistent congestion despite loops	Chlorothiazide IV (less common UK) / thiazide-type add-on	Varies by local availability	Specialist/ICU pathway	Electrolyte depletion; monitor Na/K/Mg closely
After stabilisation: start disease-modifying HF therapy	ACEi/ARB/ARNI; beta-blocker; MRA; SGLT2 inhibitor	Start low (agent-specific) once euvolaemic and BP/renal function acceptable	Usually on the ward once off IV nitrates/inotropes and not in AKI	Not “resus drugs”; avoid initiating/up-titrating beta-blocker during acute decompensation/shock

📉 Prognosis

HF prognosis worse than many cancers.
EF <35% = poor marker.
NT-proBNP correlates with survival.
Consider palliative care in end-stage disease.

📚 References

Cases - Acute Heart Failure & Pulmonary Oedema

Case 1 - Hypertensive Emergency 💥: A 72-year-old man with untreated hypertension presents acutely breathless at night, unable to lie flat. Exam: BP 210/110, tachypnoea, widespread crackles, S3 gallop. CXR: bilateral perihilar “bat-wing” shadowing. Diagnosis: Acute pulmonary oedema triggered by hypertensive crisis. Acute Management: Sit upright, oxygen, IV furosemide, IV GTN infusion, morphine if distressed, strict BP control. Monitor U&Es and fluid balance.
Case 2 - Acute MI Complication ❤️: A 64-year-old man presents with acute chest pain followed by severe dyspnoea. Exam: hypotension, crackles to mid-zones, raised JVP, cool peripheries. ECG: anterior STEMI. Echo: severe LV systolic dysfunction. Diagnosis: Acute cardiogenic pulmonary oedema secondary to MI. Acute Management: Sit upright, O₂, IV diuretics, cautious opioids; urgent PCI for MI; inotropes or mechanical support (IABP) if shock persists.
Case 3 - Acute Decompensation in Chronic HF 🌀: A 78-year-old woman with known HFrEF (EF 30%) presents with sudden worsening breathlessness after a chest infection. Exam: tachypnoeic, bibasal crackles, elevated JVP, peripheral oedema. BNP elevated, CXR: pulmonary congestion. Diagnosis: Acute decompensated heart failure with pulmonary oedema, triggered by infection. Acute Management: Sit upright, O₂, IV furosemide; treat infection (antibiotics); optimise chronic therapy (ACEi, beta-blocker, spironolactone) once stable.

Teaching Commentary 🧠

Acute heart failure with pulmonary oedema is a medical emergency. - Pathophysiology: raised LV end-diastolic pressure → pulmonary venous congestion → alveolar fluid → hypoxia. - Precipitants: MI, arrhythmias, hypertensive crisis, infection, fluid overload, non-compliance. - Clinical: severe breathlessness, orthopnoea, crackles, frothy pink sputum, gallop rhythm. - Acute management (“PODMAN”): Position upright, Oxygen, Diuretics (IV loop), Morphine, Afterload reduction (nitrates), Non-invasive ventilation if hypoxic. Long-term: optimise HF therapy (ACEi/ARNI, beta-blockers, MRA, SGLT2 inhibitors); lifestyle and fluid restriction; device therapy (CRT, ICD) in select patients.

The content on this website is provided for educational and informational purposes only to support exam preparation (e.g., MLA, MRCP, USMLE) and learning. This is NOT medical advice, diagnosis, treatment, or professional guidance. It does not replace consultation with a qualified healthcare professional, official guidelines (e.g., NICE, GMC, BNF), or supervised clinical practice. Always verify information with current, authoritative sources. Makindo and its contributors accept no liability for any reliance on this content, including errors, omissions, or any resulting harm, loss, or consequences. By using this site, you agree to these terms.

Heart Failure with preserved and reduced EF ✅

Current UK guidance: Heart failure — 2025 update for reduced, mildly reduced and preserved EF
