Always ask for the patients permission before beginning the examination.

Wash hands, Introduction and consent

• Examination is an active process and one must be thinking and looking for things not expecting them to just jump out at you.
• Even if you miss a sign or get the diagnosis you may be saved by just talking sensibly and logically about your findings.
• Inspection
  • Is the patient comfortable or breathless at rest, anaemic, plethoric, thin, obese
  • Is there a GTN spray on locker, IV fluids, IV Nitrates, Inotropes, Insulin
  • Mid-sternotomy scar - CABG or valve replacement or correction of congenital heart disease
  • Cyanosis suggests > 5g/dl of deoxygenated Hb and if the cyanosis is present centrally may suggest chest disease or a cyanotic heart condition. Sluggish poor circulation can lead to peripheral cyanosis alone with normal central oxygenation.

Face

• Down's syndrome - AV canal defects
• Turner's syndrome - Coarctation of Aorta and Bicuspid Aortic valve
• Mitral facies (malar flush) - suggests Mitral stenosis
• Lips/Mucosa - Central cyanosis
• Eyes - xanthelasma and corneal arcus in a younger person suggests hypercholesterolaemia
• Dentition - potential source of sepsis if rotten (one does not need a dental degree to have a look and comment)
• Thyrotoxic? - AF, signs of Grave's disease with eye and skin signs or a goitre
• Acromegalic - Hypertension and cardiomegaly
• Marfan's syndrome: look in mouth for high arched palate

Hands

• Warm and dilated veins suggest normality or possibly CO₂ retention.
• Cold hands may suggest poor cardiac output or peripheral vascular disease.
• Nicotine staining in a smoker
• Clubbing is an important sign: Other than chest causes consider - Cyanotic congenital heart disease in a young person, Infective endocarditis, Left atrial myxoma
• Splinter haemorrhages - can be a sign of nail trauma in a manual worker or endocarditis. Traumatic lesions are usually seen mainly in the dominant hand. Ask about work done if suspicious
• Osler's nodes - painful lesions in finger pulp suggests endocarditis
• Janeway lesions - Erythematous lesions on palm suggest endocarditis
• Nail fold telangiectasia in those with collagen vascular disease.
• Arachnodactyly "spider fingers" and high arched palate: Marfan's syndrome
• Elasticated skin and joint flexibility: Ehlers-Danlos (Aortic regurgitation)
• Elbow and Achilles tendon: Tendon xanthomata in hands and also elbow and over Achilles tendon suggests hypercholesterolaemia

Pulse

• Feel character and count the rate.
• Assess the rhythm and its regularity or lack of
• Test to see if it is collapsing.
• Compared right radial with left radial and femoral artery looking for delay.

Character

Rate (normal resting adult 60-90 bpm)

• Bradycardia (Rate < 60): Sinus bradycardia,
• Complete heart block, AV Block 2:1, Atrial flutter or fibrillation with AV block, Sinus arrest with Nodal rhythm
• Tachycardia (Rate > 100): Sinus tachycardia, Supraventricular tachycardia (AVRT, AVNRT), Atrial flutter (Rate = 300 / (2-4)), Atrial fibrillation, Ventricular tachycardia, Ventricular flutter
• Pulseless: Ventricular fibrillation, Ventricular tachycardia, Asystole, Pulseless electrical activity, death.
• If atrial fibrillation should actually count rate at the cardiac apex rather than the pulse as some beats will below the volume and undetectable at the wrist.

Rhythm

Blood pressure

• Arterial pulse waveform is composed of percussion wave travelling along an artery which is at a much higher speed than the actual passage of blood with a dicrotic notch which represents the closure of the aortic valve.
• Blood pressure is measured using a cuff that inflates above systolic pressure occluding arterial blood flow. As the cuff is deflated auscultating over the artery will produce a knocking sound
• Korotkov phase 1 sound which comes on when the cuff is inflated to systolic pressure.
• Korotkov phase 5 signifies diastolic pressure - As the cuff is deflated the sound softens and disappears
• See section on hypertension for more information

Clinical findings

• Hypertension BP > 140/90
• Pulse pressure = systolic - diastolic pressure
• Aortic stenosis - low pulse pressure
• Aortic regurgitation - high pulse pressure
• Right arm pressure > Left-arm pressure by 20 mmHg suggests stenosed left subclavian possibly due to dissection or atheroma
• Left arm pressure > right arm pressure by 20 mmHg suggests stenosed right subclavian possibly due to dissection or atheroma
• Arm (brachial) pressure >>ankle suggests peripheral vascular disease(See ABPI) or it could suggest a Coarctation of the aorta
• Right and left arm pressure often varies by 5-10 mmHg in normals

Praecordium

Listening to murmurs -Traditionally these are the areas but do not really take into account different chest anatomy and physiology and jets of turbulence can be heard outside these areas. Instead of these 4 areas, one can just start in the apex and slide the stethoscope across to the tricuspid area, up the LSE to the pulmonary area and over into the aortic areas listening as you go. A sort of sigmoidal shape. Remember to have one finger on a pulse at all times.

Wash hands, Introduction and consent

Apex beat

• Most inferior and lateral point at which apical beat is palpable. Normally is the 5th ICS in the mid-clavicular line.
• May be difficult to feel if the subject is obese, COPD or pericardial effusion. Feel for the beat and also its character.
• Dextrocardia is very rare but can sometimes appear in exams. There are different types

Auscultation

• Listen and time all sound with a finger on a pulse
• Listen in all 4 valve places at least. Listen to axilla and along LSE
• Suspect Mitral stenosis - roll patient on the left side and listen just medial to apex - exercise patient if needed
• For Aortic regurgitation sit patient forward and ask them to exhale slowly and listen the LSE

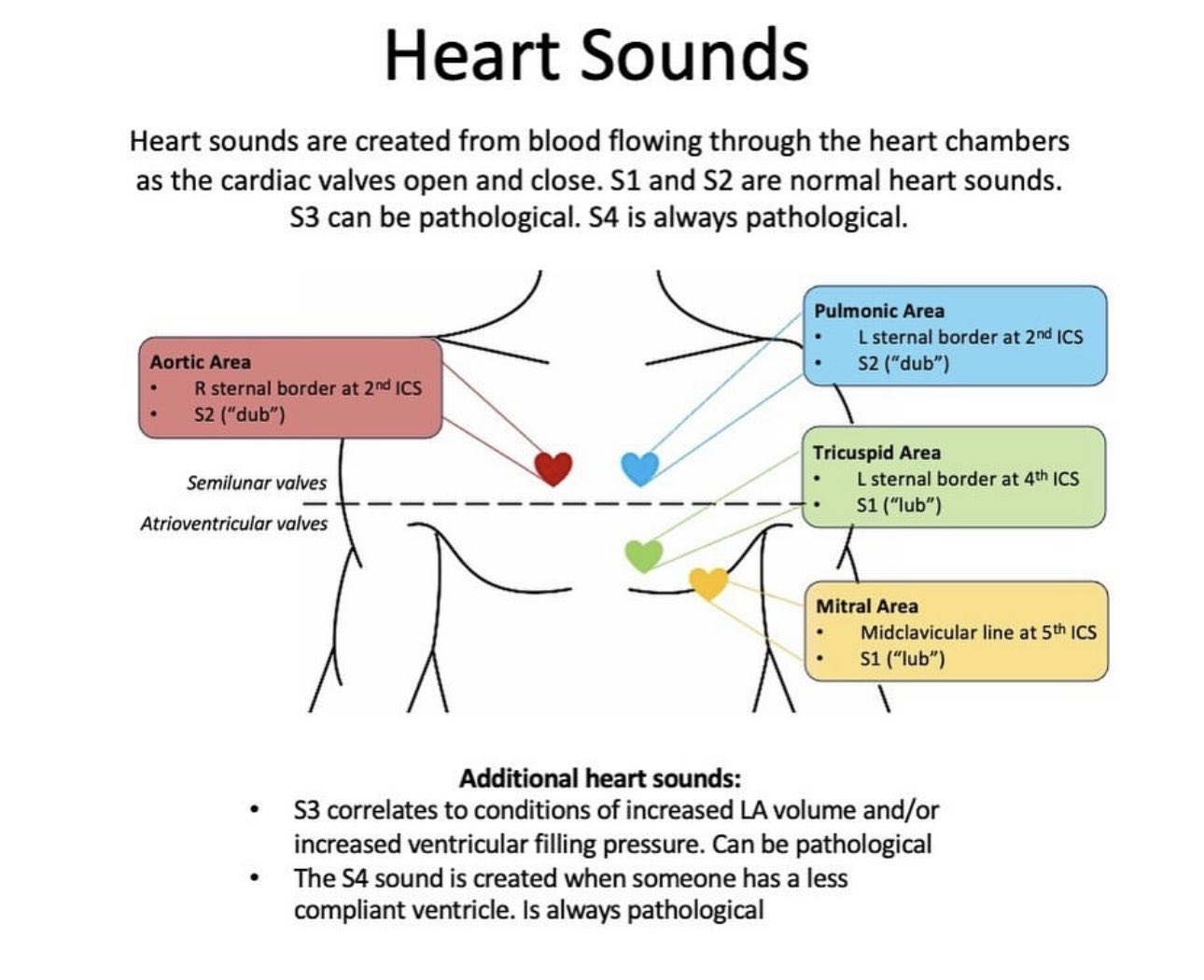

Heart Sounds

Prosthetic valves

• Metal Prosthetic sounds - Metal sounds with pulse = Mitral valve After is likely to be aortic.
• Flow murmurs may be heard. Need Warfarin. Longer lasting
• Tissue prosthetic valves - sound normal. Do not need Warfarin. Last shorter. From pig or homograft.

Other findings

• Ejection click - Occur as valves open e.g. aortic and pulmonary and suggest bicuspid valves. May be heard normally in young.
• Mid-systolic click - Seen with Mitral valve prolapse. "click murmur syndrome". May be followed by a PSM.
• Opening snap - as mitral valve opens - associated with mitral stenosis.
• Tumour "plop" - (Left) Atrial myxoma occluding mitral valve orifice in diastole with a loud S1 and MDM which mimics mitral stenosis

Pacemakers

• Usually found in the left infraclavicular fossa and should be easily palpable. Usually, put on the non-dominant side so as not to interfere with limb movement. Might actually be an ICD. Should be an overlying scar.
• An examination to be done in the morgue before you sign a cremation form as unless removed it may explode. Can also look at CXR and ECG to see if the patient has a pacemaker.
• Count the wires - single wire usually a VVI. Two wires are a DDD. More than 2 wires may be an ICD.

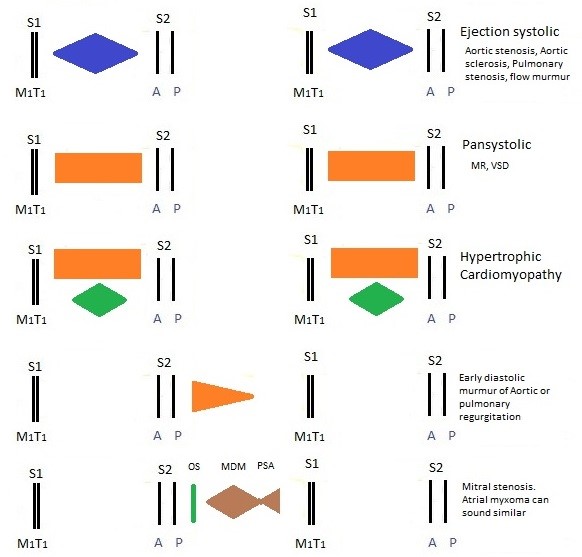

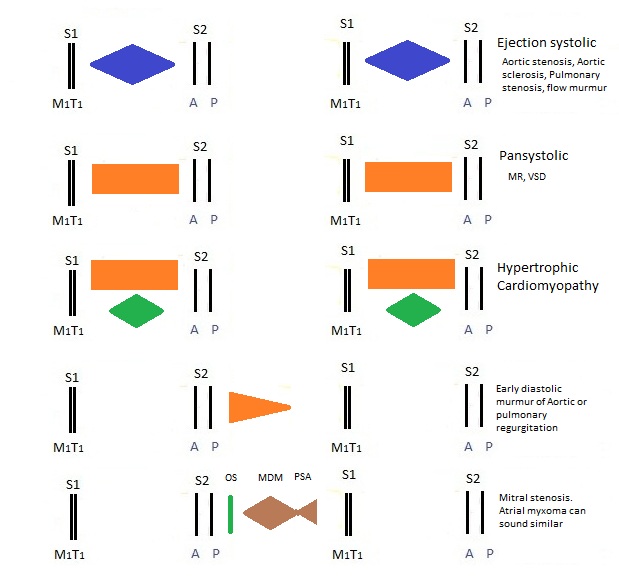

Murmurs

• Murmurs are caused by turbulent inefficient flow so kinetic energy is converted to sound energy.
• They may be due to forward flow through a narrowed valve or backward flow through an abnormally open or incompetent valve.
• Must always time with one finger on the major pulse.
• With the pulse = systolic. Not with pulse = Diastolic.

Detecting murmurs

• Aortic area: 2nd ICS to the right of the sternum
• Pulmonary area: 2nd ICS to the left of the sternum
• Mitral area: At or just medical to the cardiac apex
• Tricuspid: at the lower LSE

Grading of murmurs

• 1. Just audible
• 2. Quiet but audible with stethoscope
• 3. Moderately loud
• 4. Loud
• 5. Heard all over praecordium + thrill
• 6. Audible without stethoscope

The five important laws of cardiac auscultation are

• Murmurs with the pulse are systolic, the rest are diastolic
• Right sided murmurs get louder with inspiration and left-sided murmurs louder with expiration
• HCM and Mitral valve prolapse murmurs get louder on standing or Valsalva.
• HCM and MVP murmurs disappear with Squatting and leg raising
• All other murmurs do the opposite to HCM and MVP
• Diastolic murmurs are never innocent and rarely above grade 4

Innocent Murmurs

Diastolic murmurs are never innocent">

• An Innocent murmur is one that is not associated with any underlying heart or systemic disease.
• They are found in children and young adults and during hyperdynamic periods such as fever or pregnancy.
• Some useful pointers can help you differentiate them from murmurs that are associated with underlying problems.
• An innocent murmur is more likely when
  • The murmur is soft and systolic
  • Heard best at the left sternal edge
  • There are no added sounds
  • Normal heart sounds
  • No thrill, Normal ECG and CXR, No symptoms

Two main types of Innocent murmurs

• Venous hum: Turbulent venous flow around head and neck. Low pitched heard below clavicles. Disappears on lying flat or compression of jugular veins on the same side
• Ejection systolic murmur: Generated in the ventricle, outflow tracts or great vessels. No structural abnormality

Thrill

• A thrill is a palpable murmur and is due to turbulent blood flow and is indicative of a loud murmur.
• The flat of the hand should be placed at the base and apex of the heart.
• A diastolic thrill at the apex is suggestive of severe mitral stenosis (aortic regurgitation rarely produces a thrill).

Parasternal heave

• It is the RV equivalent of the apex beat
• A parasternal heave is a cardiac impulse palpated by placing the flat of the hand on the costal cartilages, to the left of the patient's sternum.
• It may be due to right ventricular hypertrophy when the impulse is at the same time as the apex beat and carotid pulsation.
• Less commonly it is due to left atrial enlargement when the pulsation occurs before the apex beat or carotid pulsation.

Continuous murmur

• Patent Ductus arteriosus
• Coronary AV fistula
• Ruptured sinus of Valsalva

Radiation of murmurs

• Mitral incompetence -> Axilla
• Aortic stenosis -> Carotids and apex
• Aortic incompetence -> Sternal edge

At the end of the examination

• Ask to listen to lung bases for signs of pulmonary oedema
• Ask to look for hepatomegaly and ascites for right heart failure suspected
• Ask to check lower legs - oedema, vein graft scars (sternal scar CABG)
• Offer to examine peripheral pulses
